Bridge Drainage Spout: Download

ENTERPRISES AN ISO:9001-2015 Certified Company manufacturer, supplier and Exporter of BEST QUALITY Product of Drainage Spount. SANDHYAFLEX is offering a gamut of Drainage Spout. As per the international norms and guidelines and as per MORTH  Specfication, our spout is manufactured using superior quality raw materials and employing the latest technology by our team of experts. The provided spout is used for transmitting rainwater down from a roof gutter to a drain. This Drainage Spout is made available at rock bottom prices to the clients  within stipulated time frame.

Features:

  • Easy to install
  • Accurate dimensions
  • Perfect finish
  • Strong construction
  • Delivery within commitment
  • Good Communication

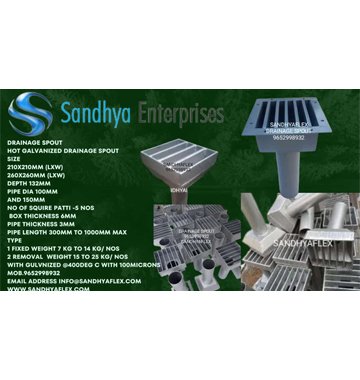

SANDHYAFLEX drainage spout is a vertical pipe for carrying rainwater down from a platform. It is made from mild steel and galvanized to prevent corrosion or rusting due to water flowing through the pipe. Drainage spouts are manufactured and supplied according to MORTH specifications. Our range of Deranges Spout and as per customers Drg.

Dimension of Drainage Spout

Sr.No. Dimension of Top in mm Dimension of Squire Patti mm  Dimension of Collection Pipe mm
Length Width Thick Height Thick No of Patti Dia Thick Dia Thick Dia Thick
Heavy Weight Quality
1 210 210 6 25 12 5 Nos 90 3 100 3 150 4
Medium Weight Quality
2 210 210 5 25 6 5 Nos 90 3 100 3 150 3
Light Weight Quality
3 210 210 4 25 4 5 Nos 90 2 100 2 150 3

 The Above Dimension Depend of Customer Requirement

Note: Collection Pipe Length as per Customer Requirement

Manufacturing Process

  1. Cutting the MS Sheet, MS Patti and MS Pipe as per Required dimension and Customer Drawing.
  2. Bending as per Customer Drawing.
  3. Welding Process as per Drawing.
  4. Sand Blasting Process.
  5. Galvanizing Process.
  6. Spray Silver Painting Process.

Drainage Inlet Pipe

A Drainage Inlet pipe opening will operate are a weir discharge or orifice discharge depending on the depth (Head) of Water at the drainage inlet.
