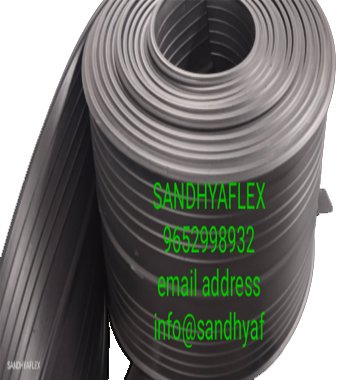

PVC Water Stopper

We are on of the top PVC Water Stopper manufacturers in india. PVC water stopper are flexible Plastic strips which provide a physical barrier to Water at concrete joints, mostly in basements, Water retaining structures like Water tanks, Swimming pools, structural foundations & other below ground level constructions. Water stops are also termed as Water Bars, seals construction joints. A typical water stops have two identical half on both side of a central bulb. These additional extensions are provided with the aim of increasing path length for water entering behind the edge of water stopper.

Compounding of PVC Water Stopper: Water stopper are manufactured from Anti-Ageing customized plastic compound with PVC as a base polymer and exhibiting required properties like High Elasticity & Tensile Strength, Immune to Corrosion, Excellent weather resistant, Unaffected by acids, alkalis, metals salts and other chemicals, Lower water absorption, Withstand high Hydrostatic pressure, Can bear shocks of heavy turbines, Earth quakes, Floods.

Application in construction Industry

  • PVC Water stopper act as sealant at RCC Masonry concrete joints & prevent any seepage of water in or out through joints.
  • PVC water stopper withstand expansion or contraction movement at joints and take care of any deflection or displacement arising due to change in temperature, differential settlement of foundation, Geo disturbances causing Seismic forces like earth quack, thus eliminating danger of cracks

Selection of appropriate PVC Water stopper

1. Ribbed Type- multipurpose water stopper design, used where differential settlement of poured concrete is expected and a firm grip in concrete is desired.
2. Dumbbell Type- Greater variation in temperature causes expansion or contraction of joints, Dumbbell type water stopper is suggested for these sites.
3. Kicker (Surface) Type: these are externally placed and are use where embedded types can not be used due to interference of steel reinforcement.

Installation procedure: Water Stoppers are tied to steel frame work through eyelets by means of small wires (same being depicted in the adjacent figure), certain metal clamps meant to grip the water stop seal and keep it in proper position. Firstly one half of the waterstop is embedded in the concrete leaving the second half extended. Second half is also embedded leaving the centre bulb free for expansion and contraction movements.

PVC Water Stopper Area of Application

  • Public Utilities : Bridges, Road Embankments, Tunnels, Water Tanks, Swimming Pools, Water Filtration plants, Swage Plants, Clarifiers, Dams, Canals, Aqueducts, Reservoirs, Irrigation Projects Cooling Towers.
  • Building: Basements, Foundations Slabs, Masonry Joints, Terraces, Retaining Walls, Overhead & Underground Water Tanks, Skyscraper.
  • Industries: Chemical Plants, Fertiliser Steel, Waste Treatment Plants, Thermal & Hydro Power Stations, Atomic Reactors, Shipyards & Docks

Precautions during water stop installation

  • They are vulnerable to get damaged during construction.
  • Compaction of concrete around waterstop should be taken care otherwise it can dislocate & could lead to a risk of honeycomb formation which may lead to leakage through concrete itself rather then through joint.

Methods for Jointing PVC Waterstops with Heater Blade

Water Stoppers can be join on site with a simple electrical heater blade.

  • Water Bars of same width & design should be sharply levelled at edges using a knife.
  • Turn on the Electric Heater Blade and wait will it become hot.
  • Place the waterstops on both sides of heater blade & press it until it melts but without burning.
  • Remove the heater blade upward.
  • Joint the molten end quickly & hold them together firmly for approximately 20-30 seconds.

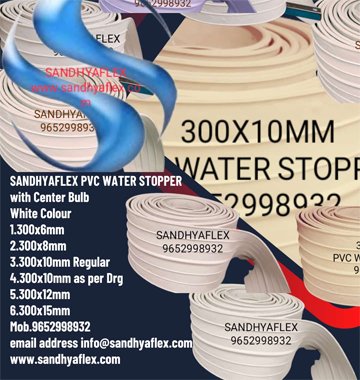

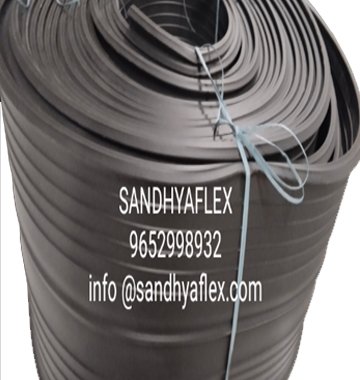

PVC Water Stopper with Center Bulb

  • 150 (6″) x 4mm
  • 150 (6″) x 5mm
  • 150 (6″) x 6mm
  • 150 (6″) x 8mm
  • 150 (6″) x 10mm
  • 200 (8″) x 8mm
  • 200 (8″) x 10mm

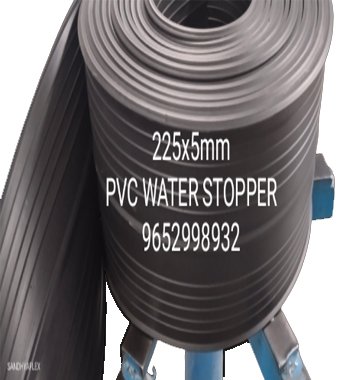

  • 225 (9″) x 5mm

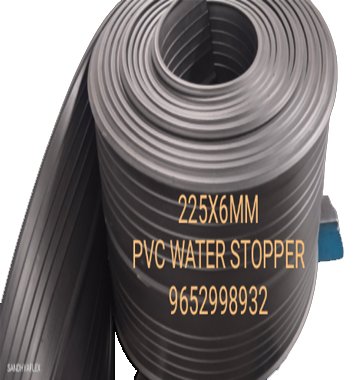

  • 225 (9″) x 6mm

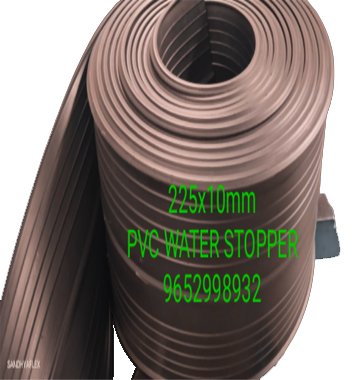

  • 225 (9″) x 8mm
  • 225 (9″) x 10mm
  • 240 x 8mm
  • 240 x 10mm
  • 250 (10″) x 8mm

  • 250 (10″) x 10mm
  • 250 (10″) x 12mm
  • 300 (12″) x 6mm
  • 300 (12″) x 8mm
  • 300 (12″) x 10mm
  • 300 (12″) x 12mm
  • 300 (12″) x 15mm

PRE TEST REPORT

Name of the Consignee

Address

Purchase order & Date

Description

Rubber Seal Size & Quantity

Testing Standard

….

Report No: SF/KMPL/2022-23/WS/051

Date: 05-11-2022

PVC Water Stopper

230mmx 6mm

Is:15058-2002 Specification.

S.No Tests IS:15058-2002 Specification
Clause Number
Permissible Limits as per
IS:15058-2002 Specification
Method of Test,
Refer to
Results
1. Physical Properties – Before Ageing
Hardness Test Cl.3.2 (Sl.no.iii) 65 Shore A (min) IS: 13360 (Part 5/Sec II) 68 Shore A
Tensile Strength Cl.3.2 (Sl.no.i) 13.8 MPa (Min) IS: 8543 (Part 4/sec I) 15.70MPa
Elongation at Break Cl.3.2 285% (Min) IS: 8543 (Part 4/sec I) 300%
2. Stability in effects of alkalies Test For 7 Days
Weight Increase IS: 15058:2002 Annex C 0.25 %(Max) IS : 15058:2002 Annex C 0.20%
Weight Decrease 0.10 % (Max) 0.09%
Change In Hardness ±5(Max) IS: 15058:2002 Annex C/
IS: 13360 (part 5/sec II)
-2
3 Stability In effects of alkalies Test For 28 days
Weight Increase IS: 15058:2002 Annex C 0.40 %(Max) IS : 15058:2002 Annex C 0.20%
Weight Decrease 0.30 % (Max) 0.10%
Change In Dimension ± 1%(Max) -1%
4 Water absorption @ Room Temperature for 24 Hours IS: 15058:2002 Annex A +0.6%(Max) IS : 15058:2002 Annex A +0.52%
5 Cold bent Temparature @ -25ºC IS:9766 Annex G Shoub be no Crack IS: 9766 -28.6ºC
6 Accelerated Extraction Test @ 60-66º Temparature For 14 Days
Tensile Strength IS: 15058:2002 Annex B 10.30 Mpa (Min) IS: 15058:2002 Annex B/ IS: 8543 (Part 4/sec I) 10.5 Mpa
Elongation at Break 280% (Min) 283%
7 Dimensions
Width 4.1.1 230 ± 10 mm IS: 15058:2002 Annex B/ IS: 8543 (Part 4/sec I) 230-235mm
Thickness 4.1.1 6.0 + 2/-0 mm 6.0-6.2mm

The above tests are carried out on specially moulded test pieces as per IS:15058-2002 Specification specification and found satisfactory.

Export Packing

Dimension in CBM

PVC Water Stopper with Center Bulb

Each Roll 25Mtr

SR No Dimension Length Width Height CBM Weight kg/Roll
1 150x5mm 0.625 0.625 0.150 0.059 40
2 150x6mm 0.625 0.625 0.150 0.059 45
3 150x8mm 0.625 0.625 0.150 0.059 55
4 200x8mm 0.625 0.625 0.200 0.059 60
5 200x10mm 0.65 0.65 0.200 0.078 64
6 225x5mm 0.625 0.625 0.23 0.090 70
7 225x6mm 0.625 0.625 0.230 0.090 65
8 225x8mm 0.65 0.65 0.230 0.097 90
9 225x10mm 0.65 0.65 0.230 0.097 100
10 240x8mm 0.65 0.650 0.240 0.104 110
11 240x10mm 0.650 0.650 0.240 0.104 125
12 250x8mm 0.675 0.675 0.250 0.114 95
13 250x10mm 0.675 0.675 0.250 0.114 115
14 300x6mm 0.700 0.700 0.300 0.147 95
15 300x8mm 0.725 0.725 0.300 0.158 115
16 300x10mm 0.750 0.750 0.300 0.169 140
17 300x12mm 0.775 0.775 0.300 0.18 140
18 300x15mm 0.800 0.800 0.300 0.192 160
Kiker Type
19 230x4mm 0.625 0.625 0.230 0.090 67
Dumbbell Type
20 230x8mm 0.650 0.650 0.230 0.090 87
21 230x10mm 0.650 0.650 0.230 0.090 100
